Fresh water
12–23 m³/dayPreliminary target, not field performance
SOLAR-THERMAL WATER PLATFORM UNDER DEVELOPMENT
Water. Energy. Life.
RAVERK is developing one solar-thermal water platform with planned mobile, modular and future industrial deployment pathways.
01
ALPHA-1
Mobile water and pilot platform
CURRENT MVP PATHWAY / ALPHA-1
Build. Measure.
Validate.

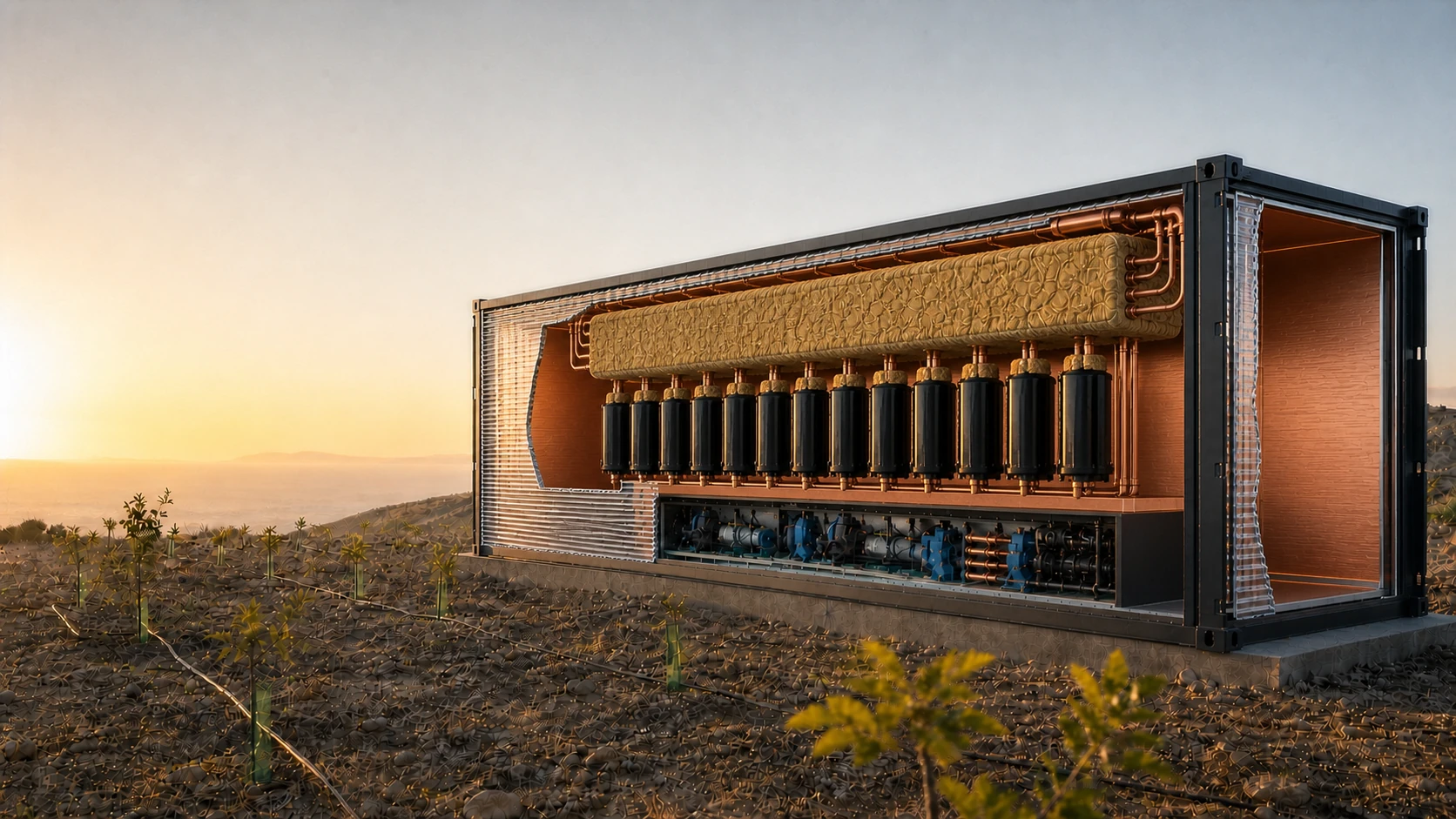

ALPHA-1 is intended for mobile water production, pilot deployment, Water-as-a-Service and selected restoration use cases.
01 Conceptual copper receiver surface02 Preliminary 10–15 cm focal-gap estimate03 Proposed insulated sand accumulatorALPHA-1
Mobile water and
pilot platform.
ALPHA-1 is the mobile prototype pathway for water production, Water-as-a-Service, pilot deployment and selected restoration use cases. The preliminary output target is 12–23 m³/day, subject to validation.
Preliminary technical baseline ↗Current stage
PrototypeEngineering and assembly
Thermal accumulator
SandConcept subject to validation
Distillation
10 vacuum stagesProposed cascade architecture

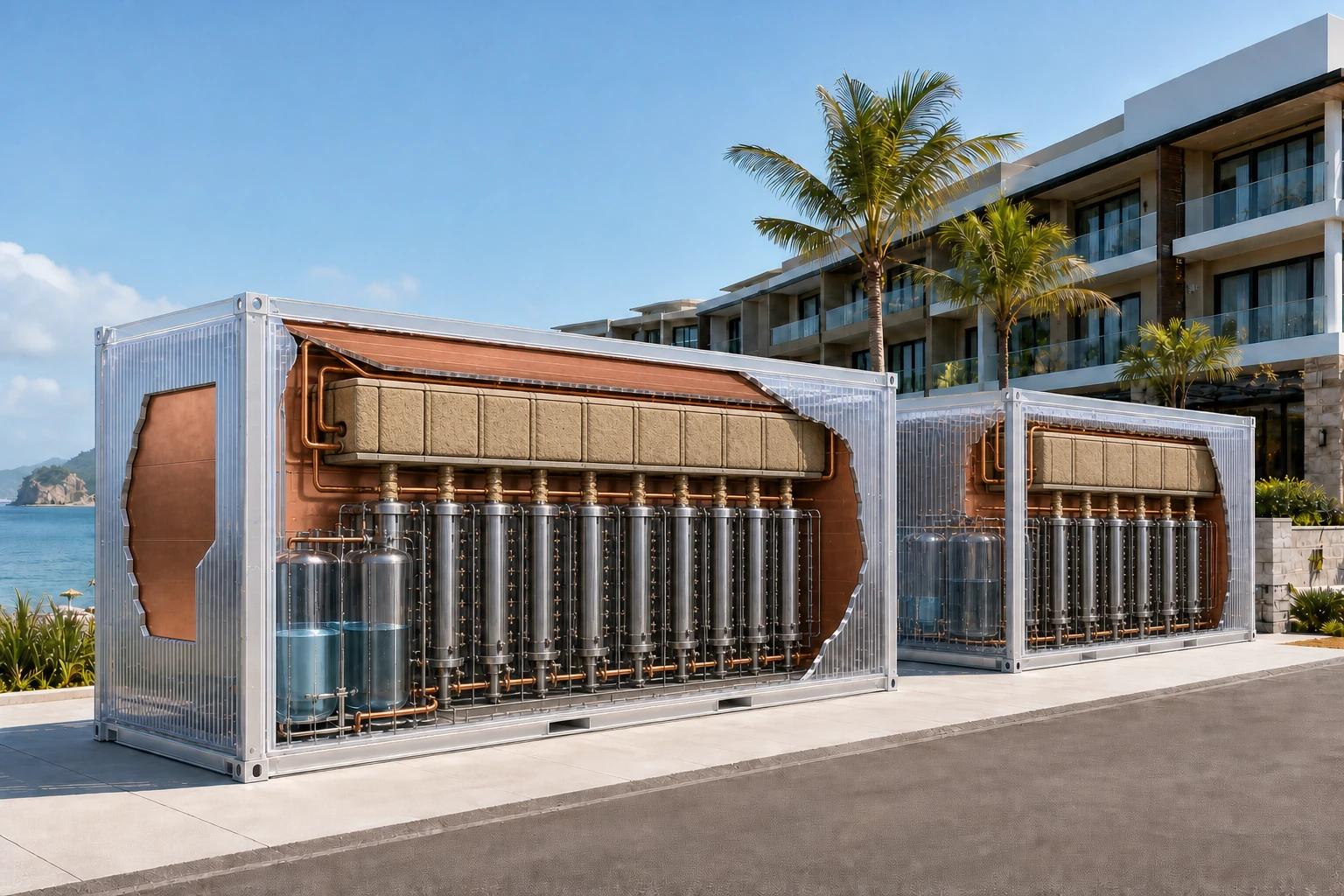

PRODUCT / 02 — ATLAS-1
Modular commercial
water unit.
ATLAS-1 uses the same integrated Fresnel-lens body, copper receiver, sand heat storage and ten-stage vacuum distillation for customer-owned, long-term water production. Multiple units connect into an ATLAS train.
CURRENT ENGINEERING CONCEPT
One proposed thermal chain.
Final optical geometry, materials and thermal performance require prototype validation.
☼Sunlight
◫Fresnel optics
▰Copper receiver
≋Sand heat storage
◉10 vacuum stages
◆Fresh water
Optical concept
Preliminary focal-gap estimate of approximately 10–15 cm, subject to modelling and measurement
Evidence boundary
Receiver geometry, heat transfer, storage losses and vacuum-stage performance remain to be validated
MOBILE DEPLOYMENT
Place. Connect. Operate.
No separate mirror field or external solar structure is required.
Transport
The 40-foot optical container travels as one integrated unit.
Connection
Connect source water, freshwater storage and the intended distribution system.
Operation
The Fresnel body directs heat to the copper receiver and sand accumulator for ten-stage vacuum distillation.

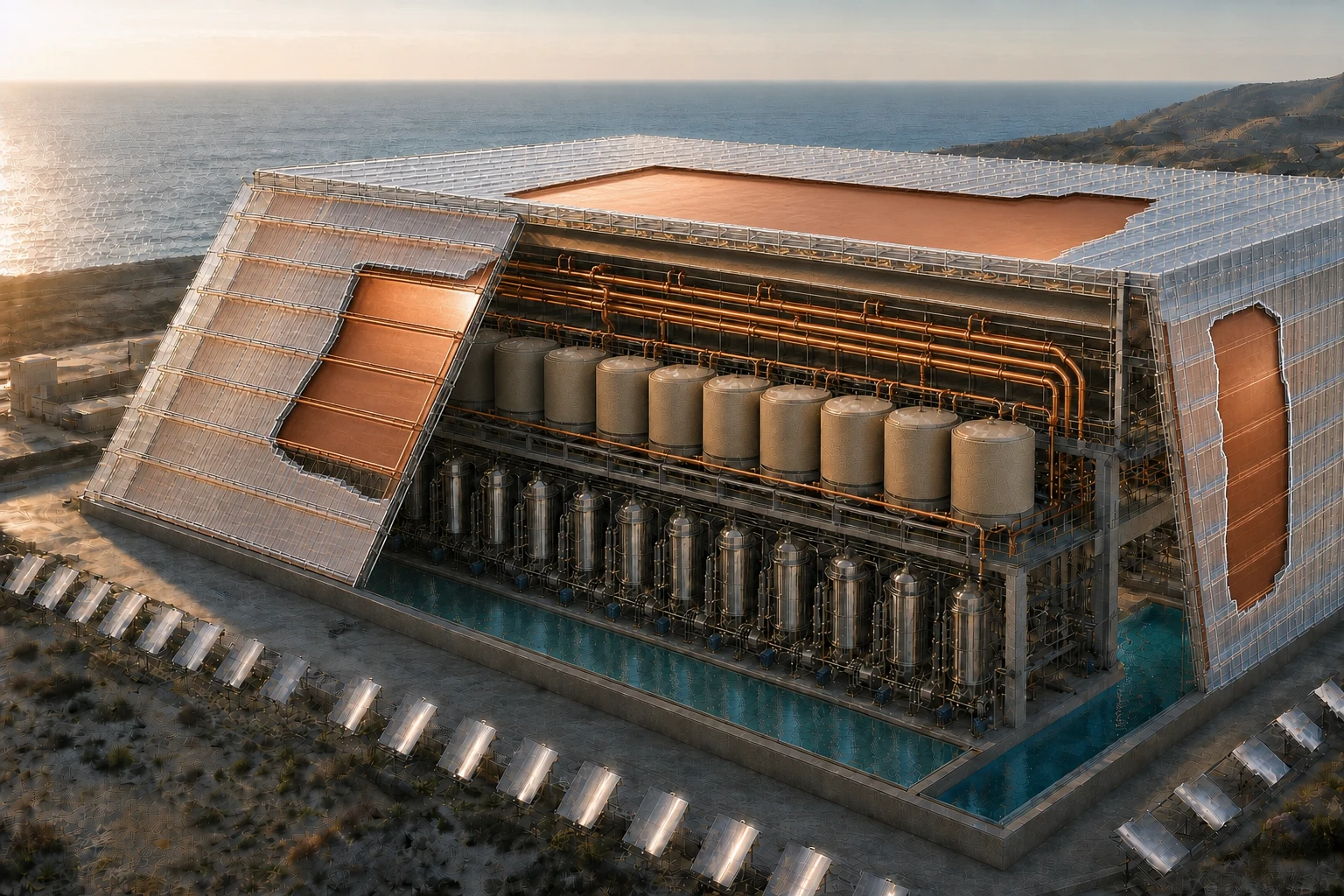

FUTURE PATHWAY / RAVERK TITAN
Future industrial integration concept.
TITAN is a future building-scale or infrastructure integration pathway. Output, geometry, materials and economics will be defined only after validation of the modular platform and site-specific engineering.
TITAN is not included in the current MVP and is not presented as a proven commercial product.
Future roof and wall optics conceptCopper receiver conceptThermal-storage integrationSite-specific engineering required
ONE PLATFORM — PLANNED PATHWAYS
ALPHA-1Mobile prototype pathway→ATLAS-1Planned modular configuration→TITANFuture industrial concept
ABOUT RAVERK
“The future will not be built by taking more from nature, but by learning how to give something back. Every ecosystem has its own balance, and our role is not to replace it, but to restore what has been lost and help life return where it can flourish naturally.”
Ivan Toma Founder & CEO, RAVERK
RAVERK’s Green Planet initiative considers how modular water and energy infrastructure can support the regeneration of coastal and arid landscapes over time.
RAVERK PLATFORM
One platform. Planned deployment pathways.
The current programme focuses on validating an integrated mobile prototype before commercial and industrial scale-up.
ALPHA-1
Mobile water production, pilots, Water-as-a-Service and selected restoration use cases.
ATLAS-1
Planned modular commercial configuration, subject to successful validation.
TITAN
Future industrial integration concept; scope and output are not yet defined.
RAVERK GREEN PLANET
Help create the first RAVERK Green Planet Forest.
Green Planet is a planned restoration programme with site-specific water, planting, monitoring and verification pathways.
Any tree records, certificates and ecological outcomes are subject to site-specific planting, monitoring and independent verification.
YOUR TREE. YOUR LEGACY.
One certificate.
One future tree.
A physical, signed and individually numbered certificate represents a future tree-planting obligation within the RAVERK Green Planet program.
Tree Certificate
Official printed certificate, unique number, RAVERK signature and one-tree planting obligation.
Tree Archive
After planting: unique tree number, species, planting date, GPS coordinates, photo verification and archive link.
Physical Marker
A discreet engraved glass-stone marker can identify the tree with its number, benefactor, species and planting date.
Living Ecosystem

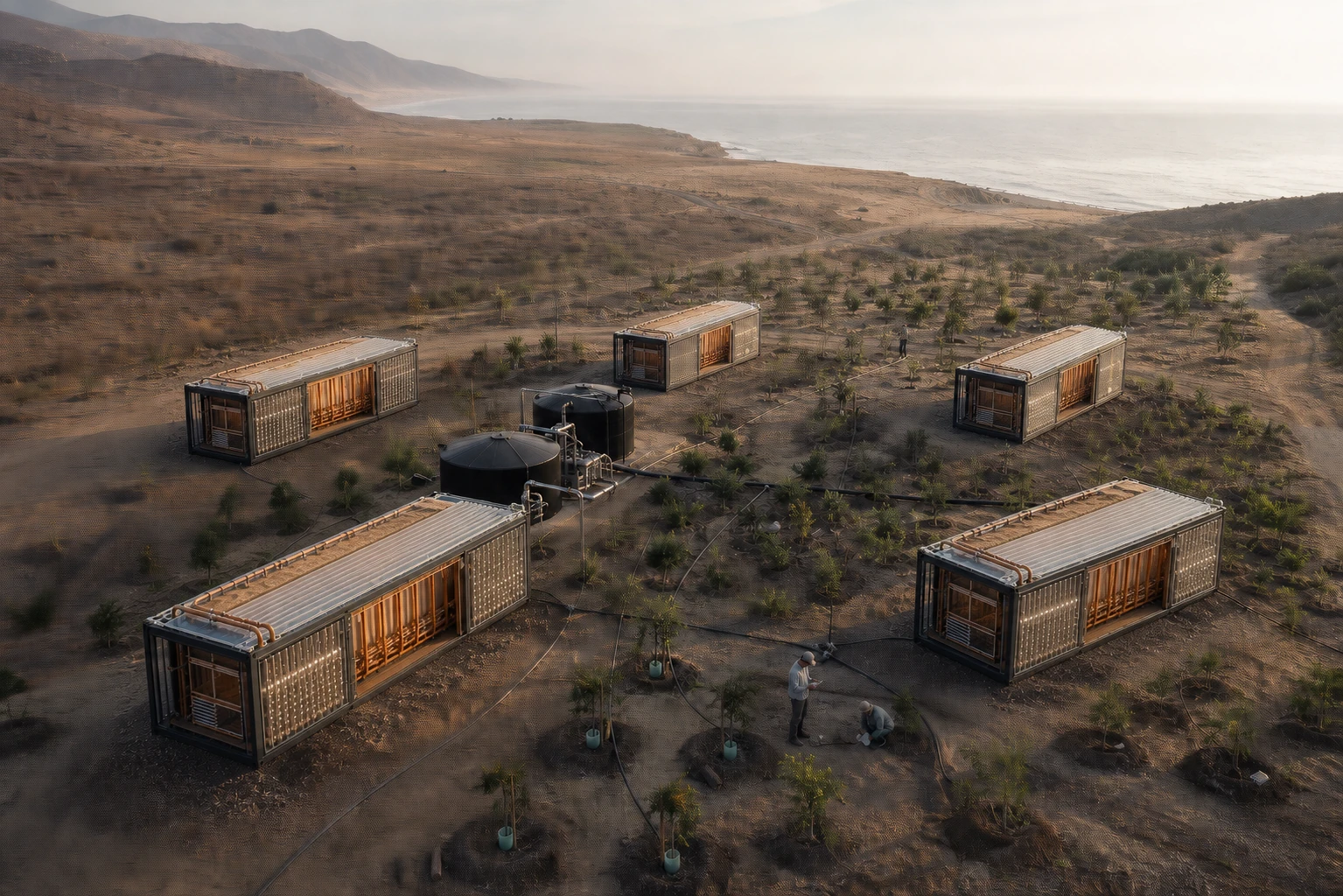

Multiple water units support irrigation networks designed to help restoration grow beyond a single tree.
POTENTIAL FUTURE FUNDING PATHWAYS
Subject to chemical and commercial validation.
Certificate-based participation and possible salt-recovery applications are being evaluated as potential future support for Green Planet.
Feed chemistry testingSalt compositionProduct safetyRegulatory reviewMarket validationSite economics
No salt product availability or revenue is assumed. Any certificate, planting record, ecological outcome or recovered-salt application depends on project development, permissions, monitoring, independent verification and applicable regulation.
PRELIMINARY TECHNICAL BASELINE
Designed to be measured.
- Current status
- Engineering design and prototype assembly
- Solar concept
- Fresnel optical elements; final geometry to be validated
- Focal-gap estimate
- Approximately 10–15 cm; preliminary
- Heat receiver
- Copper receiver surfaces; final arrangement open
- Heat transfer
- Copper loop concept subject to thermal testing
- Thermal storage
- Insulated sand accumulator concept
- Water process
- Proposed 10-stage vacuum evaporation
- ALPHA-1 target
- 12–23 m³/day; not measured field performance
- TITAN
- Future concept; output to be defined after validation
APPLICATIONS
Built for demanding conditions.
Coastal communities
Water infrastructure for exposed coastal locations.
Industrial sites
Modular support for resource-intensive operations.
Remote operations
Off-grid systems built around dependable output.
Disaster relief
Rapid deployment where critical water is needed.
